Nature, annoyingly, often outdoes human engineering without breaking a sweat. Researchers from the University of Turku, Finland, recently leveraged this fact—particularly the intricate fractal patterns of leaf skeletons—to build better flexible electronic devices without the usual complexity and environmental costs of cleanroom manufacturing.

Nature’s Fractal Advantage

Fractals, structures repeating at progressively smaller scales, are everywhere in nature—think branching veins in leaves, blood vessels, or even broccoli florets. Humans have long replicated fractals using mathematical formulas or crafty origami, but these artificial imitations rarely match nature’s intricate efficiencies.

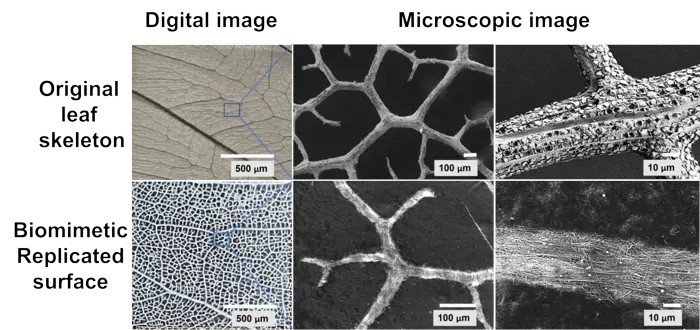

The team at Turku sidestepped these limitations, directly borrowing leaf skeletons themselves. By spraying stretchable polymers onto dried leaf skeletons, researchers produced flexible surfaces with more than 90% structural accuracy compared to the original natural templates. These replicated fractal patterns significantly boosted mechanical properties crucial for wearable electronics: enhanced stretchability, breathability, conformal skin attachment, and impressive transparency. Beyond mechanical flexibility, the fractal structure also improves electrical conductivity, energy efficiency, and charge transport—qualities critical for next-generation flexible electronics like wearable sensors, transparent electrodes, and bioelectronic skin.

From Fragile Skeletons to Robust Electronics

Traditional methods, such as artificial fractal designs (think origami and kirigami), typically struggle with scaling up efficiently. But leaf skeletons inherently offer optimized, hierarchical structures already honed by millions of years of evolution. However, the natural leaf skeleton itself isn't exactly robust or scalable—it decays and lacks elasticity. The researchers neatly overcame these shortcomings by transferring the leaf’s intricate fractal structure onto stretchable polymers, ensuring durability and scalability suitable for large-scale production.

“We have succeeded in merging nature’s efficient designs with modern materials, which opens new possibilities for flexible and wearable electronics,” explains doctoral researcher Amit Barua at the University of Turku.

In practical demonstrations, the researchers applied metal nanowires onto their biomimetic surfaces, achieving electrical conductivity suitable for tactile sensing, heating elements, and electronic skin devices.

Greener Tech Without Cleanroom Hassle

Crucially, this approach is significantly more sustainable than conventional cleanroom-based fabrication, which demands high energy and meticulously controlled conditions. Instead, Turku’s approach works at room temperature in ordinary environments, dramatically lowering the environmental footprint. Sustainable polymers can also replace traditional synthetic materials, further reducing ecological impact.

“To design sophisticated microstructures with high precision, cleanroom fabrication is usually required. This new biomimetic approach has the potential to bypass the need for cleanroom technologies when fabricating complex architectures, thereby contributing to lower carbon emissions,” Barua adds.

In essence, rather than painstakingly engineering fractal structures from scratch in energy-intensive cleanrooms, scientists are now hijacking evolutionary wisdom directly from nature. It's simpler, cheaper, greener, and—as usual—nature got there first.

‍
